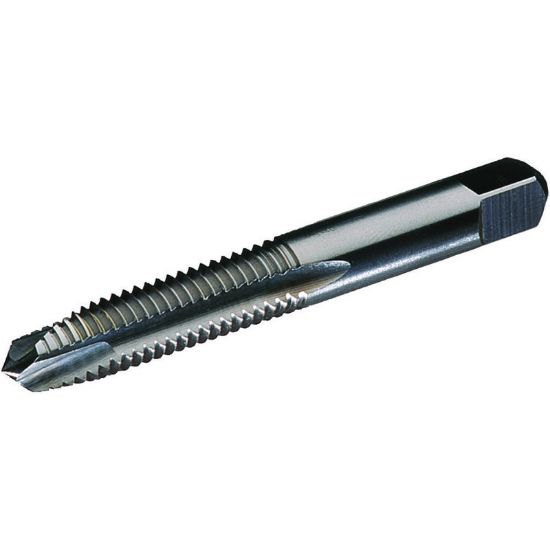

WIDIA/KENNAMETAL 13377 M4.5-0.75MM Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID13377
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Ohio
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Type Metric
Tap Square 0.1520
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Overall Len 2.3740 60.30MM
Thread Size M4.5
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 0.75MM
Thread Limit D4
Tool Material Steel
Flute Direction R - Right
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1543 3.92MM
Length Type Standard
Tap Style Hand Tap
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
