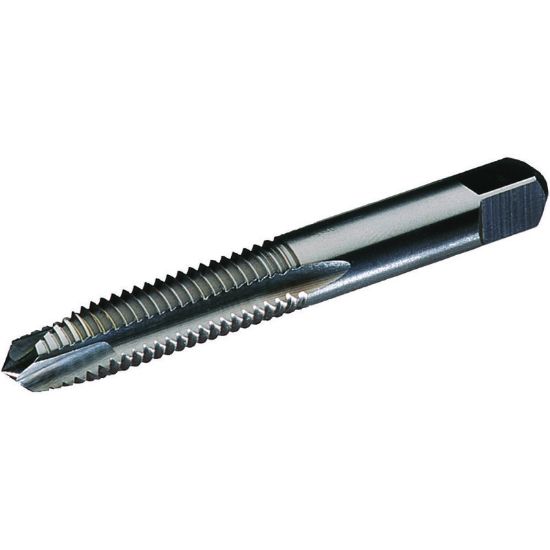

WIDIA/KENNAMETAL 13373 M3.5-0.60MM Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID13373
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Limit D4
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Length Type Standard
Thread Pitch 0.60MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Chamfer 3.0P-5.5P
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Size M3.5
Thread Type Metric
Tap Type Plug
Flutes/Inserts 2
Tap Style Hand Tap
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
