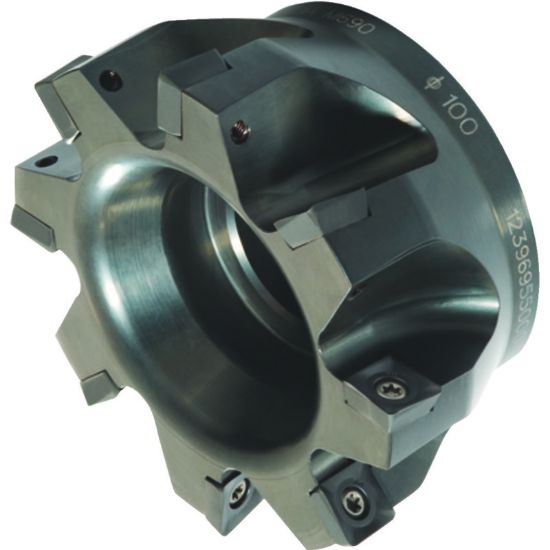

Picture of WIDIA/KENNAMETAL 12396955200 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL 12396955200 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: 12396955200

ISO: 12396955200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003597
Delivery date: 3-5 days
$1,074.05

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.9690 50.01MM
Length Of Cut 0.3940 10.01MM
Insert Size Ic 12
Flutes/Inserts 10
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
