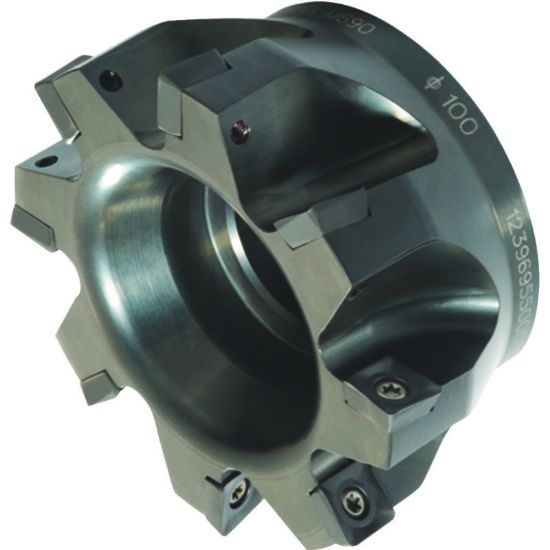

Picture of WIDIA/KENNAMETAL 12396955000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL 12396955000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: 12396955000

ISO: 12396955000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003596
Delivery date: 3-5 days
$921.09

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Face Milling, Side Milling
Made In USA No
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Overall Len 1.9690 50.01MM
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 12
Flutes/Inserts 8
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
