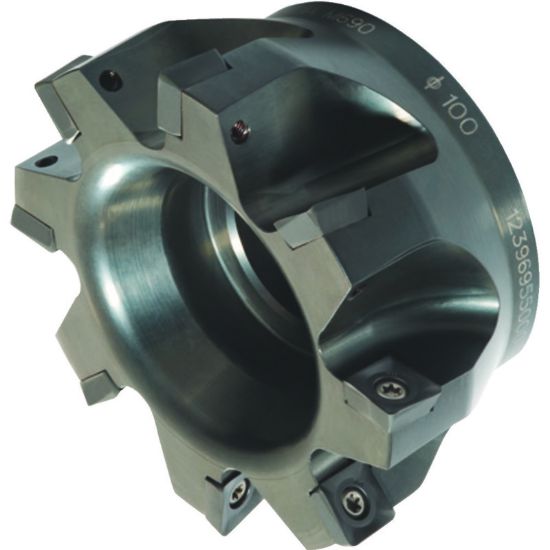

Picture of WIDIA/KENNAMETAL 12396954800 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12396954800 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: 12396954800

ISO: 12396954800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003581
Delivery date: 3-5 days
$860.48

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 8
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.9690 50.01MM
Insert Size Ic 12
Machine Side Connection Size 1.0630 27.00MM
Length Of Cut 0.3940 10.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
Coolant Thru Yes
