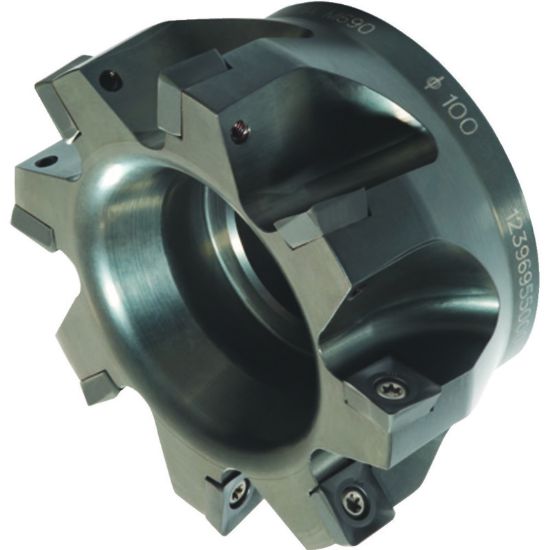

Picture of WIDIA/KENNAMETAL 12396954200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396954200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: 12396954200

ISO: 12396954200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003573
Delivery date: 3-5 days
$593.33

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cutter Dia 2.4800 62.99MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Length Of Cut 0.3940 10.01MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
