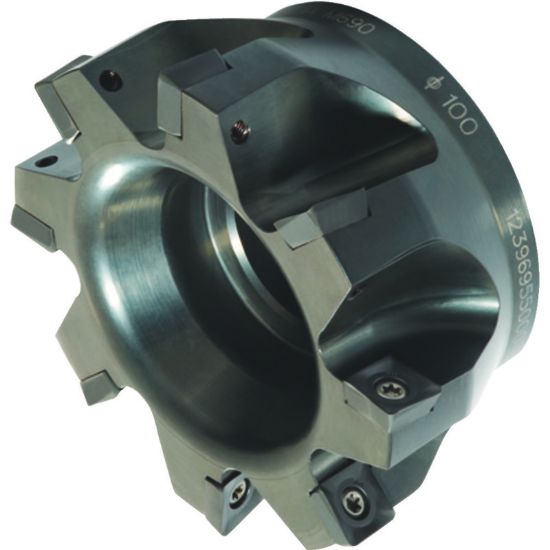

Picture of WIDIA/KENNAMETAL 12396954000 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396954000 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: 12396954000

ISO: 12396954000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003557
Delivery date: 3-5 days
$525.57

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 12
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Cutter Dia 1.9690 50.01MM
Length Of Cut 0.3940 10.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style SD
Hand R/L Right
