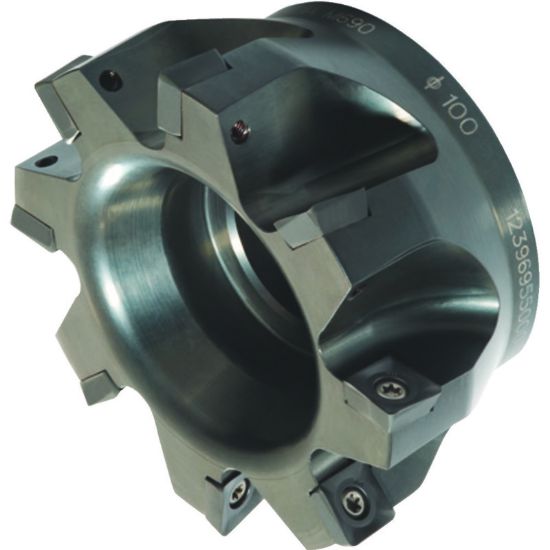

Picture of WIDIA/KENNAMETAL 12396953800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396953800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: 12396953800

ISO: 12396953800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003556
Delivery date: 3-5 days
$525.57

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 12
Flutes/Inserts 4
Length Of Cut 0.3940 10.01MM
Cutter Dia 1.9690 50.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
Coolant Thru Yes
