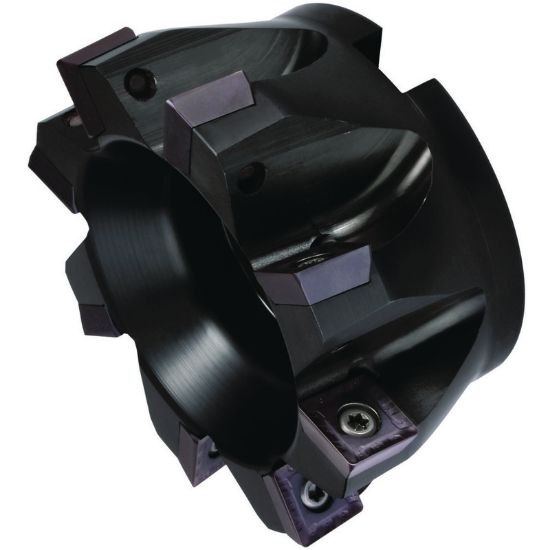

Picture of WIDIA/KENNAMETAL 12396945000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL 12396945000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: 12396945000

ISO: 12396945000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003595
Delivery date: 3-5 days
$911.99

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Length Of Cut 0.4724 12.00MM
Insert Size Ic 15
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.9690 50.01MM
Flutes/Inserts 8
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
