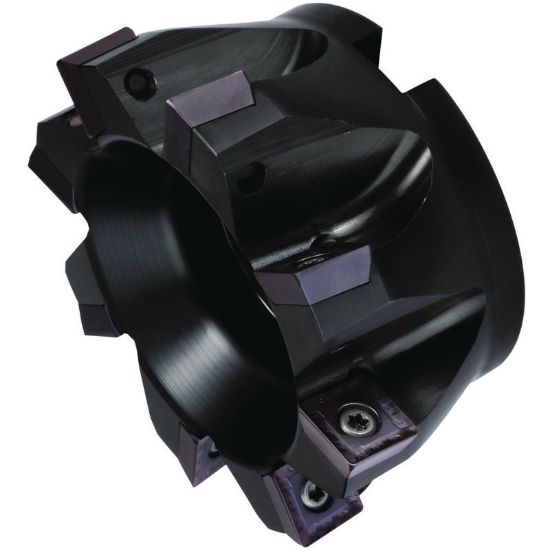

Picture of WIDIA/KENNAMETAL 12396944600 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12396944600 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: 12396944600

ISO: 12396944600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003579
Delivery date: 3-5 days
$727.39

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 6
Insert Size Ic 15
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Length Of Cut 0.4724 12.00MM
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
Coolant Thru Yes
