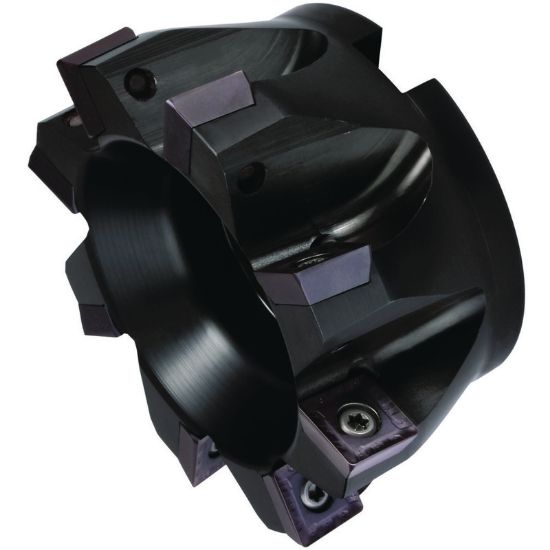

Picture of WIDIA/KENNAMETAL 12396944200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396944200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: 12396944200

ISO: 12396944200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003562
Delivery date: 3-5 days
$637.85

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Cutter Dia 2.4800 62.99MM
Length Of Cut 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
Coolant Thru Yes
