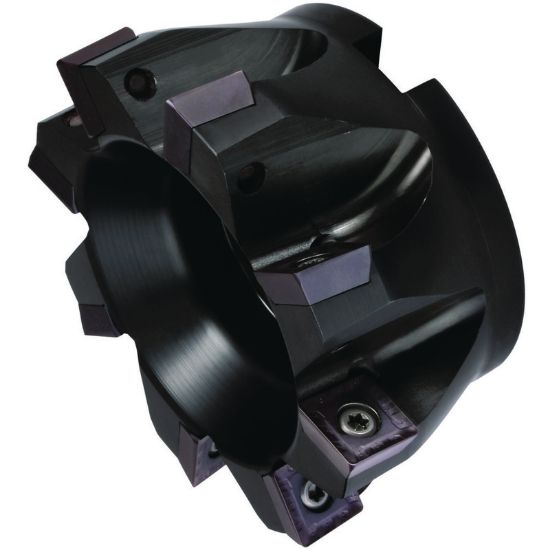

Picture of WIDIA/KENNAMETAL 12396943800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396943800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: 12396943800

ISO: 12396943800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003555
Delivery date: 3-5 days
$492.56

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 1.9690 50.01MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Length Of Cut 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style SD
Hand R/L Right
