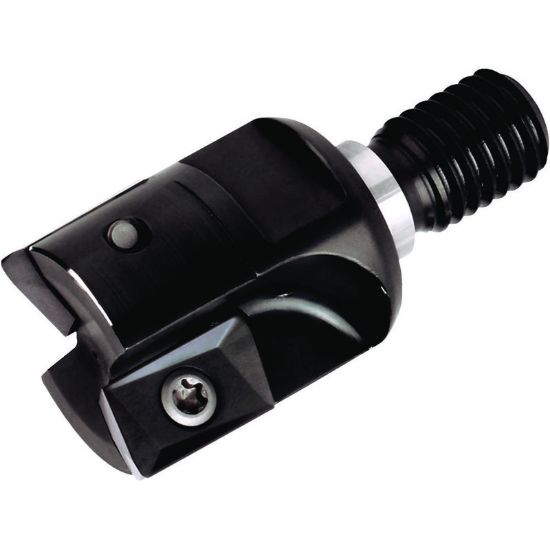

Picture of WIDIA/KENNAMETAL 12396933400 90.0° Milling Cutter 1.574 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12396933400 90.0° Milling Cutter 1.574 Cutter Diameter Screw On M16

ANSI: 12396933400

ISO: 12396933400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003540
Delivery date: 3-5 days
$371.96

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.5748 40.00MM
Machine Side Connection Type Screw On
Insert Size Ic 16
Overall Len 2.4803 63.00MM
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size M16
Length Of Cut 0.5510 14.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XP
