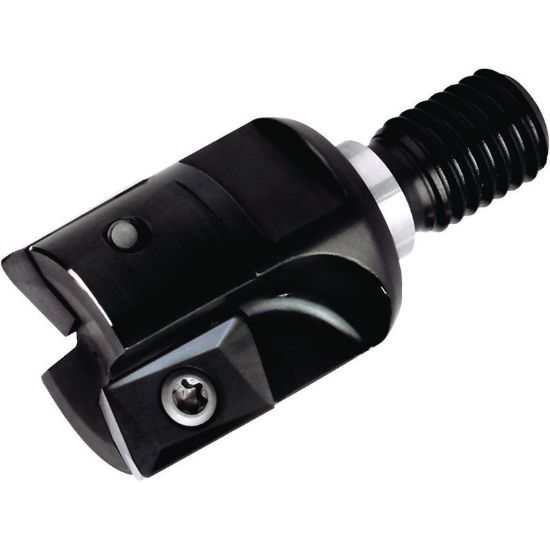

Picture of WIDIA/KENNAMETAL 12396933200 90.0° Milling Cutter 1.378 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12396933200 90.0° Milling Cutter 1.378 Cutter Diameter Screw On M16

ANSI: 12396933200

ISO: 12396933200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003521
Delivery date: 3-5 days
$338.23

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size M16
Length Of Cut 0.5510 14.00MM
Insert Size Ic 16
Overall Len 2.4803 63.00MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style XP
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
