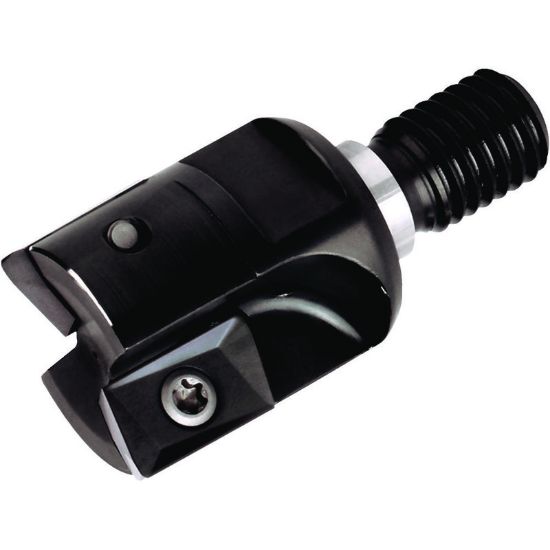

Picture of WIDIA/KENNAMETAL 12396933000 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12396933000 90.0° Milling Cutter 1.260 Cutter Diameter Screw On M16

ANSI: 12396933000

ISO: 12396933000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003517
Delivery date: 3-5 days
$320.11

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Machine Side Connection Size M16
Length Of Cut 0.5510 14.00MM
Tool Material Steel
Machine Side Connection Type Screw On
Cutter Dia 1.2600 32.00MM
Overall Len 2.4800 62.99MM
Insert Size Ic 16
Cutting & Machining Properties
Insert Style XP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
