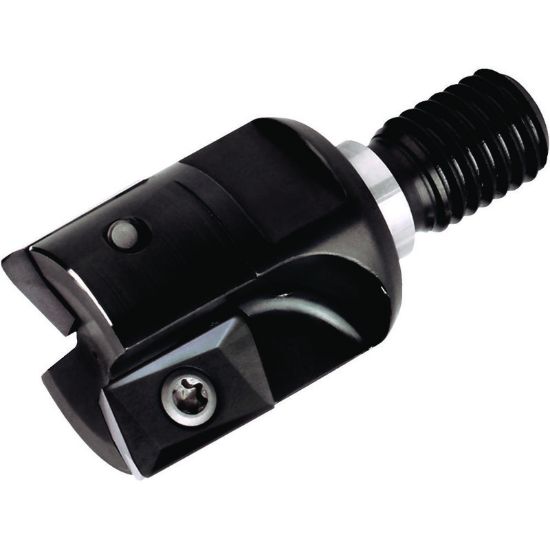

Picture of WIDIA/KENNAMETAL 12396932600 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL 12396932600 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: 12396932600

ISO: 12396932600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003477
Delivery date: 3-5 days
$303.77

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert offering high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 2.0470 51.99MM
Tool Material Steel
Flutes/Inserts 2
Length Of Cut 0.5510 14.00MM
Insert Size Ic 16
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XP
