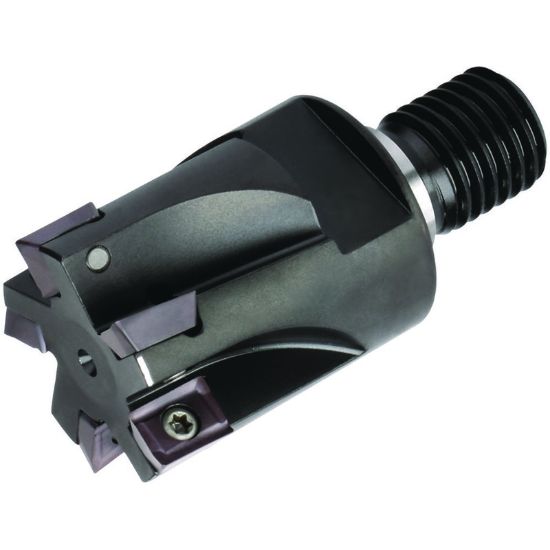

Picture of WIDIA/KENNAMETAL 12396931400 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL 12396931400 90.0° Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: 12396931400

ISO: 12396931400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2223036
Delivery date: 3-5 days
$356.80

Features And Benefits

General-purpose shoulder mill. Small yet strong insert.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 0.9844 25.00MM - 63/64
Overall Len 2.0472 52.00MM
Insert Size Ic 10
Flutes/Inserts 3
Length Of Cut 0.3740 9.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AO
Coolant Thru Yes
