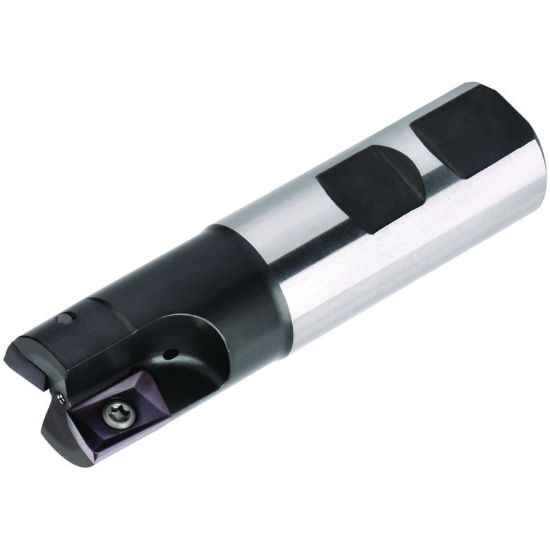

Picture of WIDIA/KENNAMETAL 12396923400 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL 12396923400 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

ANSI: 12396923400

ISO: 12396923400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003539
Delivery date: 3-5 days
$420.81

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Dimension Description 1.575 x 1.260 x 0.551 x 4.331
Length Of Cut 0.5510 14.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Overall Len 4.3310 110.01MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XP
Coolant Thru Yes
Hand R/L Right
