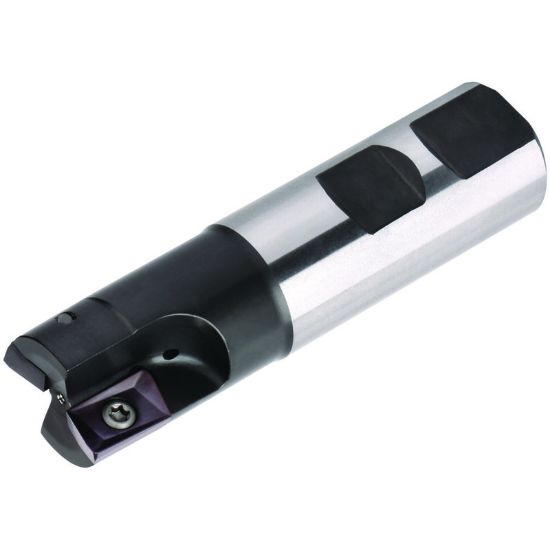

Picture of WIDIA/KENNAMETAL 12396923000 90.0° Milling Cutter 1.260 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL 12396923000 90.0° Milling Cutter 1.260 Cutter Diameter Cylindrical 1.259

ANSI: 12396923000

ISO: 12396923000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003515
Delivery date: 3-5 days
$338.23

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2598 32.00MM
Overall Len 3.9370 100.00MM
Length Of Cut 0.6046 15.36MM
Cutter Dia 1.2600 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Dimension Description 1.260 x 1.260 x 0.605 x 3.937
Tool Material Steel
Insert Size Ic 16
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style XP
Insert Shape/Cutter Pocket Shape Other
