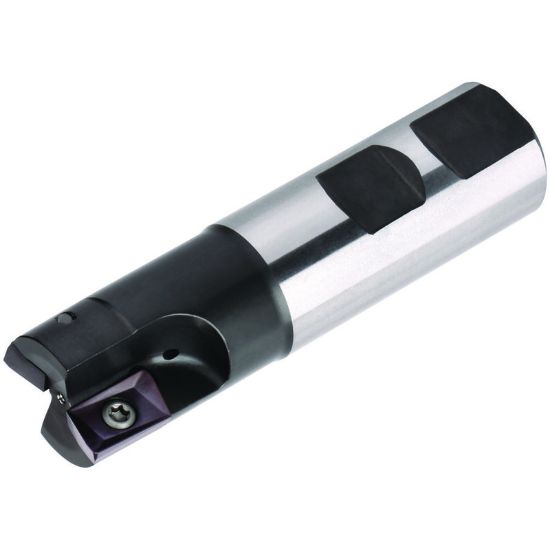

Picture of WIDIA/KENNAMETAL 12396922600 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL 12396922600 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: 12396922600

ISO: 12396922600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003475
Delivery date: 3-5 days
$300.84

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Dimension Description 0.984 x 0.984 x 0.550 x 3.780
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 16
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Overall Len 3.7795 96.00MM
Length Of Cut 0.5500 13.97MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XP
