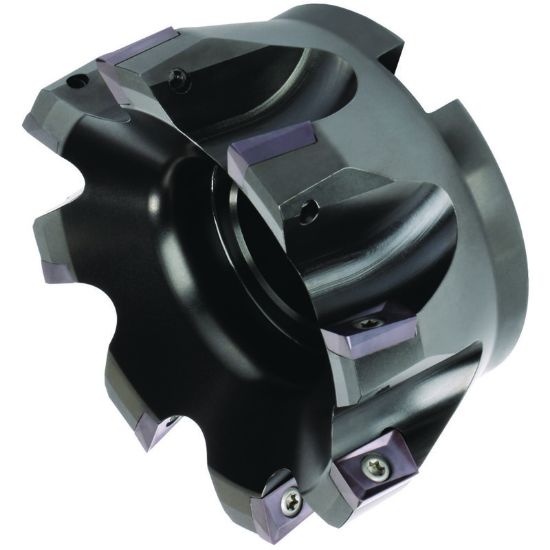

Picture of WIDIA/KENNAMETAL 12396905400 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.574

WIDIA/KENNAMETAL 12396905400 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.574

ANSI: 12396905400

ISO: 12396905400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003681
Delivery date: 3-5 days
$873.43

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 9
Overall Len 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Length Of Cut 0.5510 14.00MM
Tool Material Steel
Insert Size Ic 16
Cutter Dia 4.9210 124.99MM
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XP
Coolant Thru No
