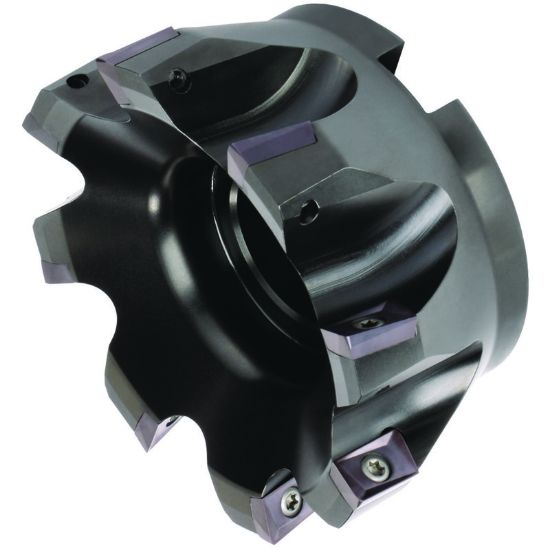

Picture of WIDIA/KENNAMETAL 12396905000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL 12396905000 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: 12396905000

ISO: 12396905000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003594
Delivery date: 3-5 days
$703.97

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Side Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.9690 50.01MM
Length Of Cut 0.5510 14.00MM
Insert Size Ic 16
Flutes/Inserts 8
Cutter Dia 3.9370 100.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style XP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
