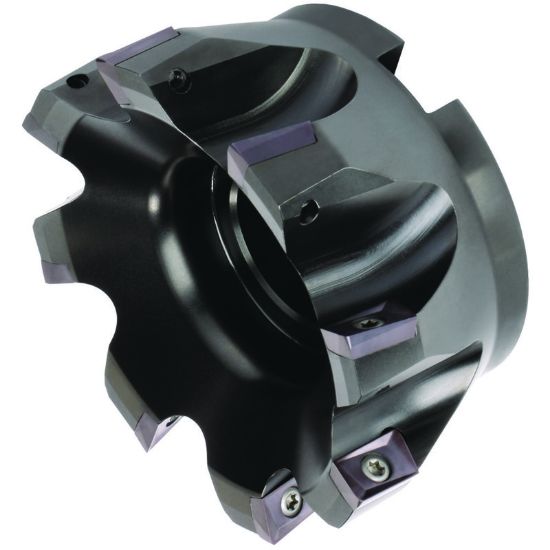

Picture of WIDIA/KENNAMETAL 12396904600 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12396904600 90.0° Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: 12396904600

ISO: 12396904600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003578
Delivery date: 3-5 days
$590.97

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Length Of Cut 0.5510 14.00MM
Insert Size Ic 16
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Insert Style XP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
