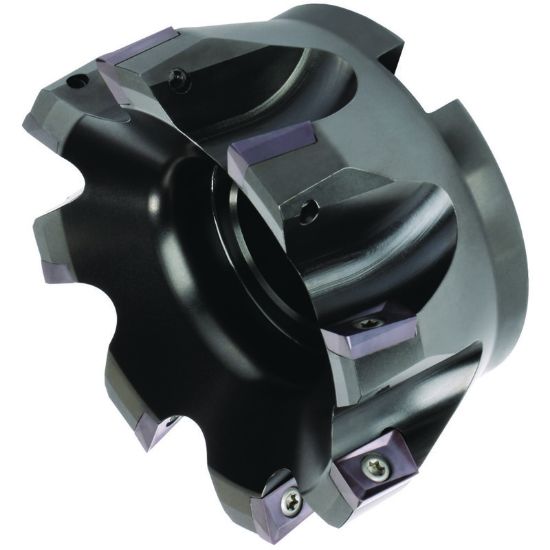

Picture of WIDIA/KENNAMETAL 12396904200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396904200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: 12396904200

ISO: 12396904200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003561
Delivery date: 3-5 days
$523.51

Features And Benefits

Four cutting edges. 90° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.5750 40.01MM
Cutter Dia 2.4800 62.99MM
Length Of Cut 0.5510 14.00MM
Insert Size Ic 16
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XP
