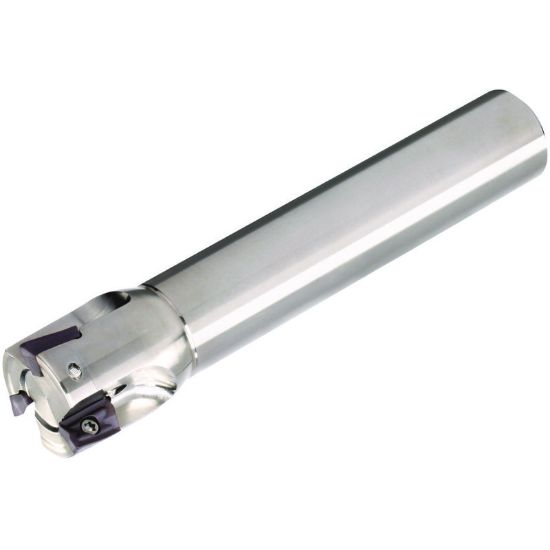

Picture of WIDIA/KENNAMETAL 12396465200 90.0° Milling Cutter 1.181 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL 12396465200 90.0° Milling Cutter 1.181 Cutter Diameter Cylindrical 0.984

ANSI: 12396465200

ISO: 12396465200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577870
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Dimension Description 1.181 x 0.984 x 0.394 x 5.118
Overall Len 5.1180 130.00MM
Flutes/Inserts 4
Length Of Cut 0.3940 10.01MM
Insert Size Ic 11
Cutter Dia 1.1810 30.00MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
