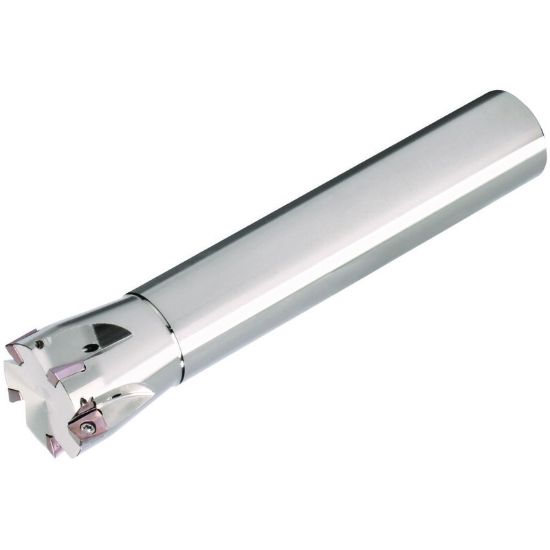

Picture of WIDIA/KENNAMETAL 12396442400 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL 12396442400 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: 12396442400

ISO: 12396442400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577814
Delivery date: 3-5 days
$361.49

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Dimension Description 0.787 x 0.787 x 0.236 x 4.331
Overall Len 4.3310 110.01MM
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Tool Material Steel
Flutes/Inserts 5
Length Of Cut 0.2360 5.99MM
Cutter Dia 0.7870 19.99MM
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
