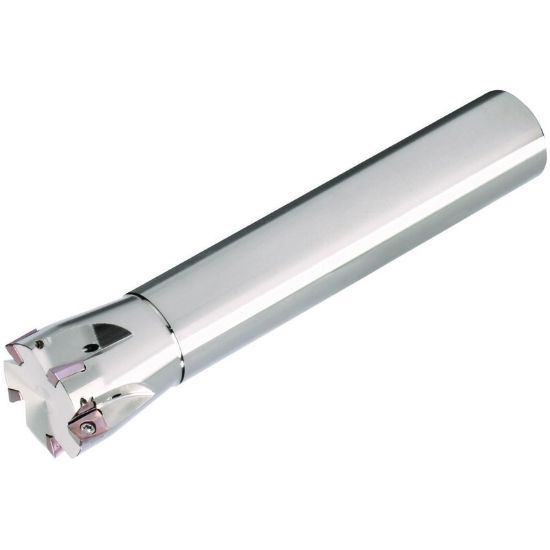

Picture of WIDIA/KENNAMETAL 12396442000 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL 12396442000 90.0° Milling Cutter 0.787 Cutter Diameter Cylindrical 0.629

ANSI: 12396442000

ISO: 12396442000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577812
Delivery date: 3-5 days
$361.49

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Length Of Cut 0.2360 5.99MM
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Dimension Description 0.787 x 0.630 x 0.236 x 4.331
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.7870 19.99MM
Overall Len 4.3310 110.01MM
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
