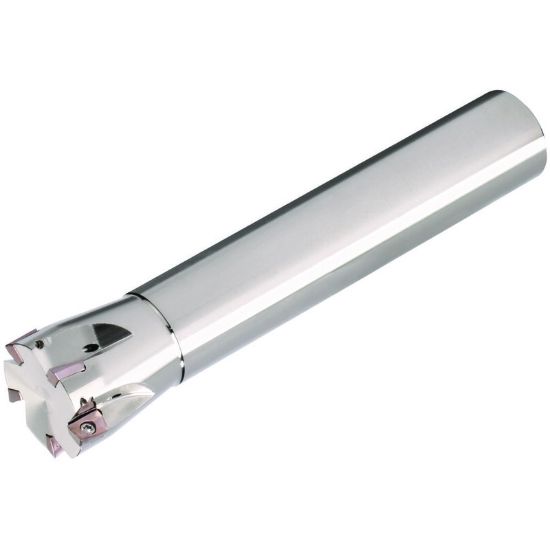

Picture of WIDIA/KENNAMETAL 12396441400 90.0° Milling Cutter 0.669 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL 12396441400 90.0° Milling Cutter 0.669 Cutter Diameter Cylindrical 0.629

ANSI: 12396441400

ISO: 12396441400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577809
Delivery date: 3-5 days
$285.12

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Shipping State Pennsylvania
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Dimension Description 0.669 x 0.630 x 0.236 x 3.937
Overall Len 3.9370 100.00MM
Length Of Cut 0.2360 5.99MM
Flutes/Inserts 3
Cutter Dia 0.6690 16.99MM
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
