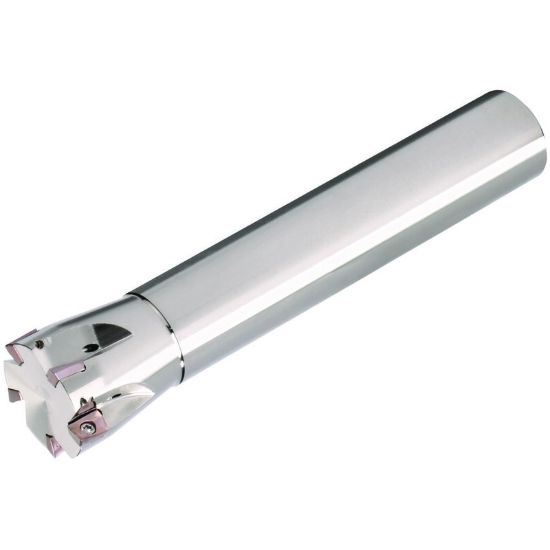

Picture of WIDIA/KENNAMETAL 12396441000 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL 12396441000 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

ANSI: 12396441000

ISO: 12396441000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577807
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Dimension Description 0.630 x 0.630 x 0.236 x 3.937
Flutes/Inserts 3
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Of Cut 0.2360 5.99MM
Cutter Dia 0.6300 16.00MM
Insert Size Ic 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
