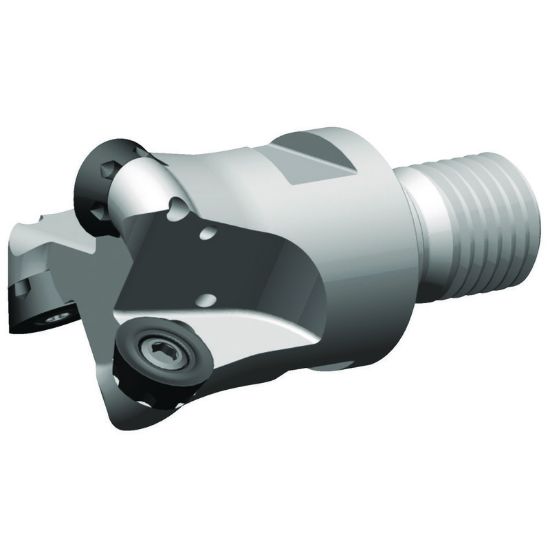

Picture of WIDIA/KENNAMETAL 12391051200 Button Cutter Milling Cutter 1.574 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12391051200 Button Cutter Milling Cutter 1.574 Cutter Diameter Screw On M16

ANSI: 12391051200

ISO: 12391051200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021379
Delivery date: 3-5 days
$479.76

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Round Milling, Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Cutter Dia 1.5748 40.00MM
Cut Dia Min 1.1024 28.00MM
Tool Material Steel
Machine Side Connection Size M16
Insert Size Ic 12
Flutes/Inserts 4
Depth Of Cut Max 0.2362
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Insert Style RD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
