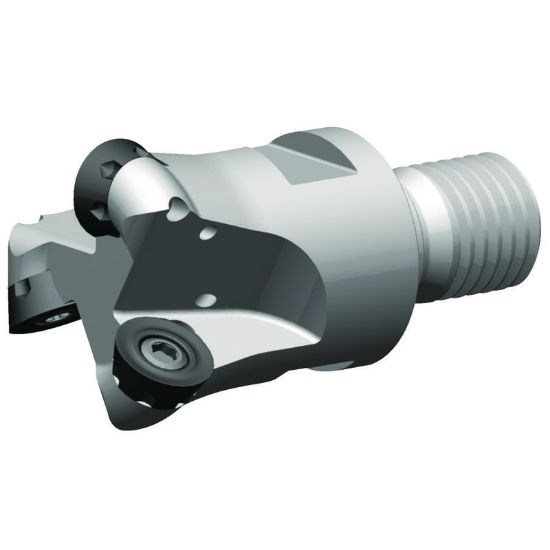

Picture of WIDIA/KENNAMETAL 12391051000 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12391051000 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

ANSI: 12391051000

ISO: 12391051000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021378
Delivery date: 3-5 days
$380.31

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size M16
Cut Dia Min 0.9055 23.00MM
Machine Side Connection Type Screw On
Insert Size Ic 12
Flutes/Inserts 3
Cutter Dia 1.3780 35.00MM
Depth Of Cut Max 0.2362
Tool Material Steel
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
