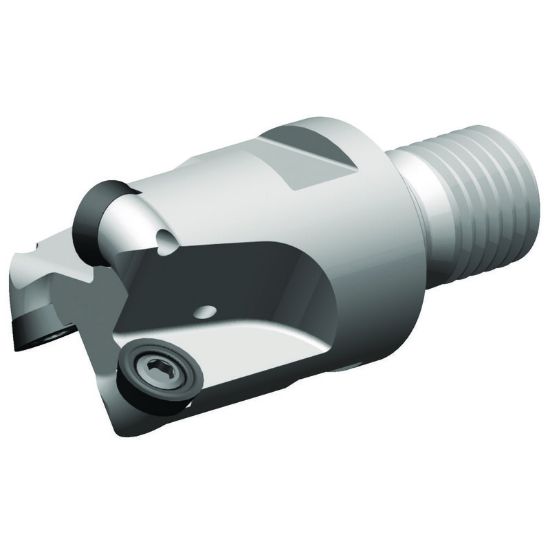

Picture of WIDIA/KENNAMETAL 12391050600 Button Cutter Milling Cutter 1.181 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL 12391050600 Button Cutter Milling Cutter 1.181 Cutter Diameter Screw On M16

ANSI: 12391050600

ISO: 12391050600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021376
Delivery date: 3-5 days
$366.75

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Made In USA No
Dimensional Specifications
Cutter Dia 1.1811 30.00MM
Machine Side Connection Size M16
Insert Size Ic 10
Cut Dia Min 0.7874 20.00MM
Tool Material Steel
Overall Len 2.4803 63.00MM
Depth Of Cut Max 0.1969
Flutes/Inserts 3
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
