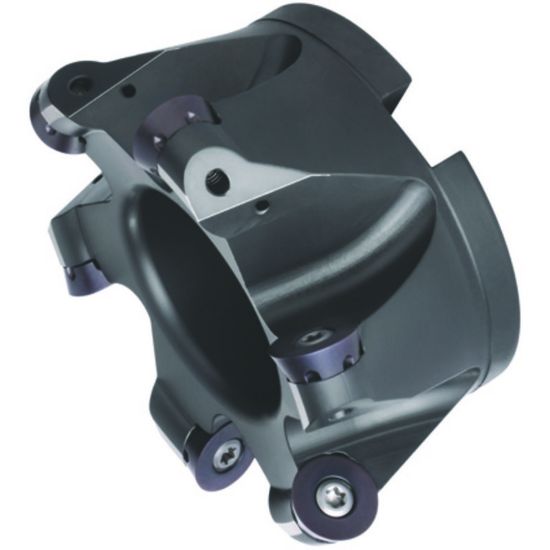

Picture of WIDIA/KENNAMETAL 12391024000 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12391024000 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

ANSI: 12391024000

ISO: 12391024000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021361
Delivery date: 3-5 days
$589.01

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Depth Of Cut Max 0.2360
Tool Material Steel
Overall Len 1.5750 40.01MM
Insert Size Ic 12
Cut Dia Min 1.5750 40.01MM
Cutter Dia 2.0470 51.99MM
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
