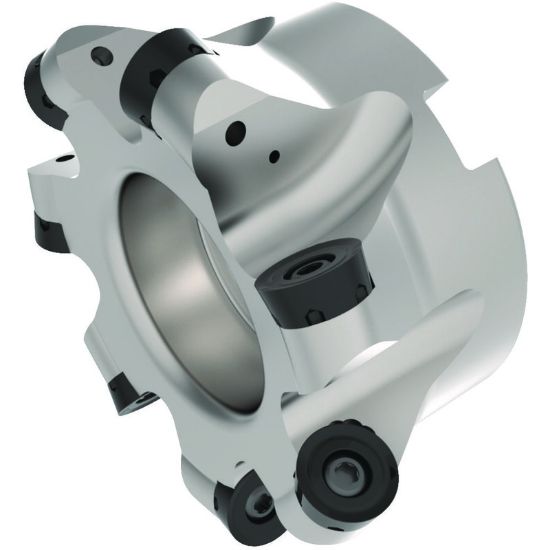

Picture of WIDIA/KENNAMETAL 12391023800 Button Cutter Milling Cutter 2.598 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12391023800 Button Cutter Milling Cutter 2.598 Cutter Diameter Face Mill 1.063

ANSI: 12391023800

ISO: 12391023800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021360
Delivery date: 3-5 days
$677.28

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 16 "6"
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Overall Len 1.5748 40.00MM
Cutter Dia 2.5984 66.00MM
Depth Of Cut Max 0.3150
Cut Dia Min 1.9685 50.00MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
