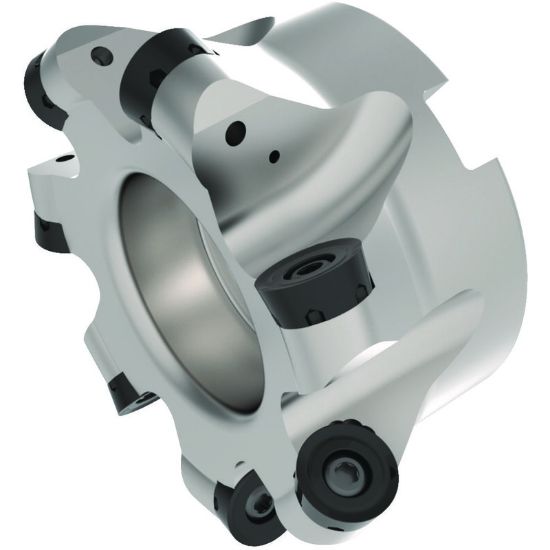

Picture of WIDIA/KENNAMETAL 12391023400 Button Cutter Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12391023400 Button Cutter Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

ANSI: 12391023400

ISO: 12391023400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021358
Delivery date: 3-5 days
$514.16

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.9685 50.00MM
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cut Dia Min 1.3386 34.00MM
Insert Size Ic 16 "6"
Tool Material Steel
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
