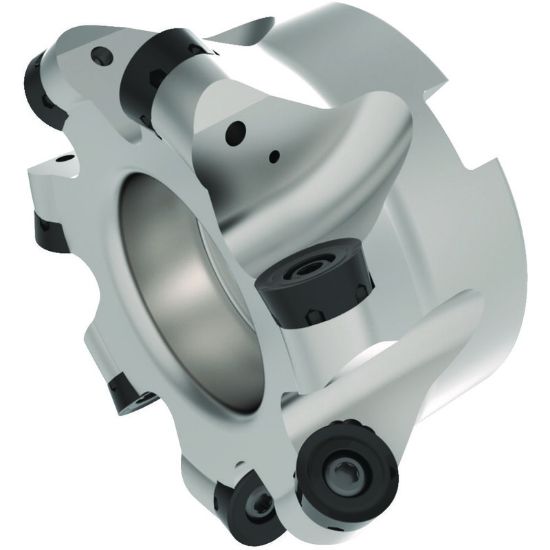

WIDIA/KENNAMETAL 12391022400 Button Cutter Milling Cutter 4.921 Cutter Diameter Face Mill 1.574

ANSI: 12391022400

ISO: 12391022400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021354
Delivery date: 3-5 days
$1,012.77

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Pocket Milling, Round Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Cut Dia Min 4.2913 109.00MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 8
Cutter Dia 4.9213 125.00MM
Insert Size Ic 16 "6"
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RC
Coolant Thru No
