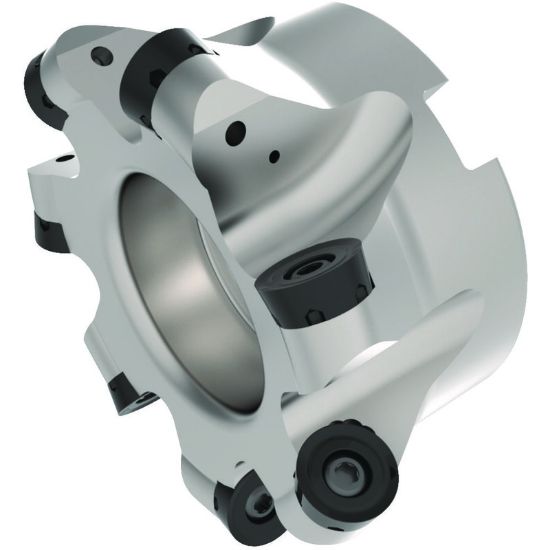

Picture of WIDIA/KENNAMETAL 12391022200 Button Cutter Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL 12391022200 Button Cutter Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: 12391022200

ISO: 12391022200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021353
Delivery date: 3-5 days
$847.04

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.9685 50.00MM
Insert Size Ic 16 "6"
Cutter Dia 3.9370 100.00MM
Cut Dia Min 3.3071 84.00MM
Tool Material Steel
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style RC
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
