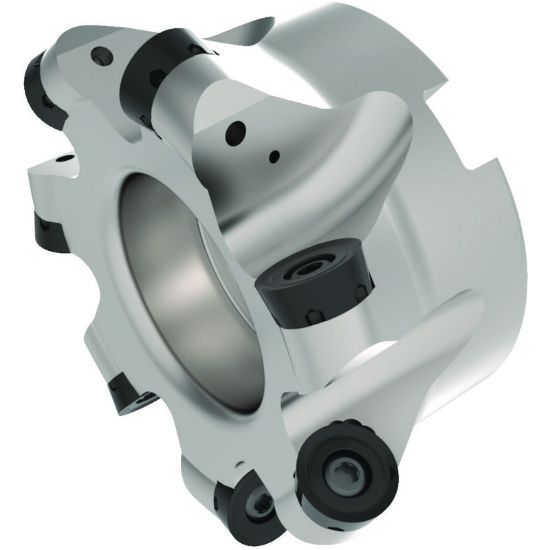

Picture of WIDIA/KENNAMETAL 12391022000 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12391022000 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: 12391022000

ISO: 12391022000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021352
Delivery date: 3-5 days
$745.31

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Cut Dia Min 2.5197 64.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Insert Size Ic 16 "6"
Tool Material Steel
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
