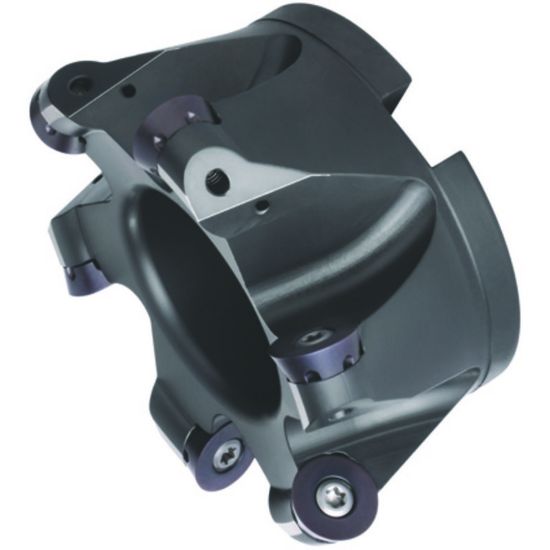

Picture of WIDIA/KENNAMETAL 12391020400 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12391020400 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: 12391020400

ISO: 12391020400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021344
Delivery date: 3-5 days
$776.91

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 12
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Cut Dia Min 2.6772 68.00MM
Depth Of Cut Max 0.2362
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
