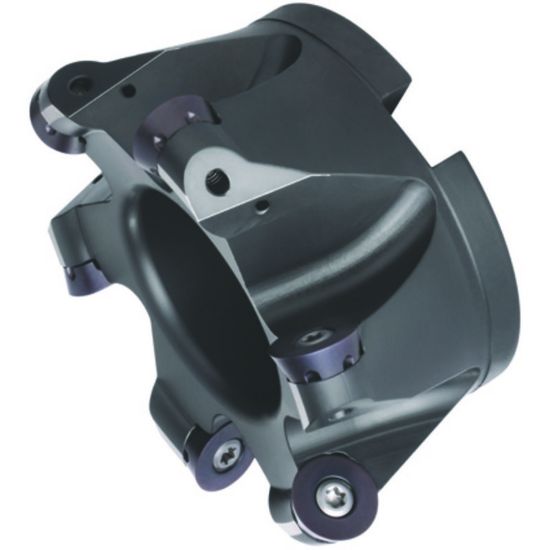

Picture of WIDIA/KENNAMETAL 12391020200 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL 12391020200 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 1.063

ANSI: 12391020200

ISO: 12391020200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021343
Delivery date: 3-5 days
$590.93

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 2.0079 51.00MM
Flutes/Inserts 5
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Depth Of Cut Max 0.2362
Cutter Dia 2.4803 63.00MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
