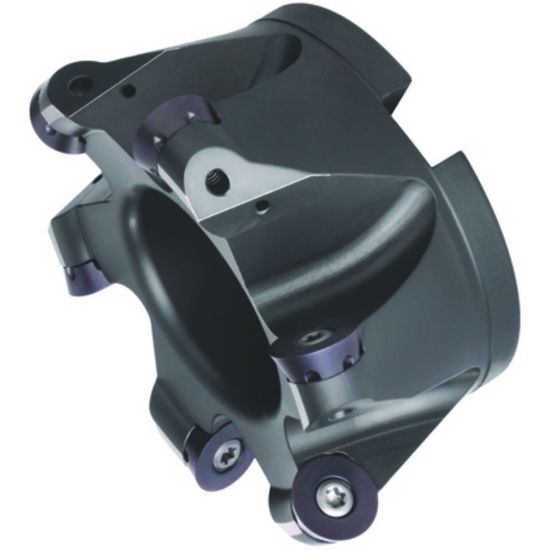

Picture of WIDIA/KENNAMETAL 12391020000 Button Cutter Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12391020000 Button Cutter Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

ANSI: 12391020000

ISO: 12391020000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021342
Delivery date: 3-5 days
$571.59

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2362
Tool Material Steel
Overall Len 1.5748 40.00MM
Insert Size Ic 12
Cut Dia Min 1.4961 38.00MM
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 1.9685 50.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
