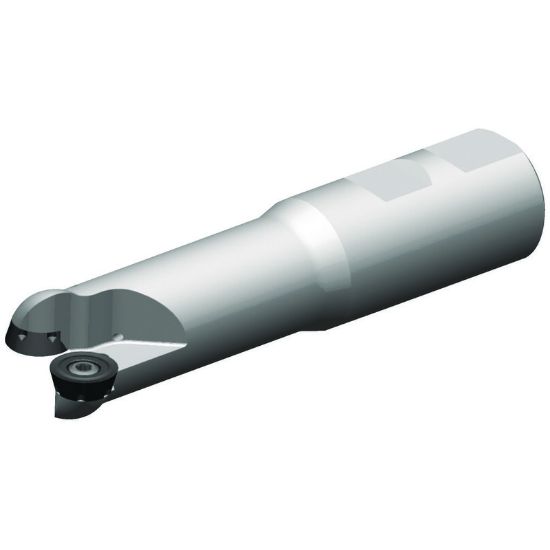

Picture of WIDIA/KENNAMETAL 12391013800 Button Cutter Milling Cutter 1.259 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL 12391013800 Button Cutter Milling Cutter 1.259 Cutter Diameter Cylindrical 1.259

ANSI: 12391013800

ISO: 12391013800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021341
Delivery date: 3-5 days
$464.37

Features And Benefits

General purpose face and copy milling. Anti-rotation feature for top security.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 0.6299 16.00MM
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutter Dia 1.2598 32.00MM
Overall Len 5.5900 141.99MM
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
