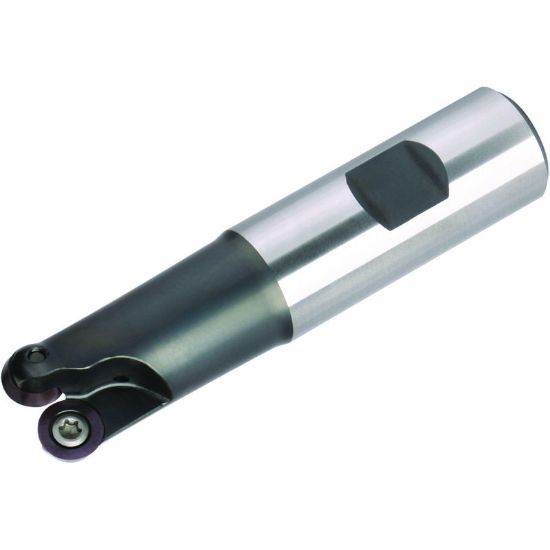

Picture of WIDIA/KENNAMETAL 12391012800 Button Cutter Milling Cutter 1.023 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL 12391012800 Button Cutter Milling Cutter 1.023 Cutter Diameter Cylindrical 1.259

ANSI: 12391012800

ISO: 12391012800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021339
Delivery date: 3-5 days
$464.37

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Round Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Overall Len 5.5906 142.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Cut Dia Min 0.6299 16.00MM
Cutter Dia 1.0236 26.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Insert Size Ic 10
Depth Of Cut Max 0.1969
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
