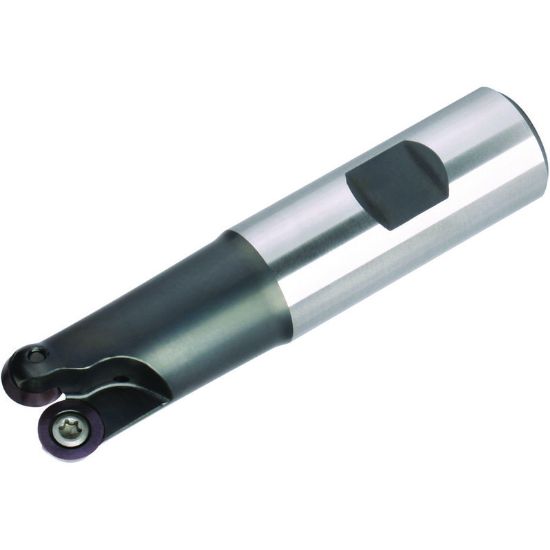

Picture of WIDIA/KENNAMETAL 12391012000 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL 12391012000 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.984

ANSI: 12391012000

ISO: 12391012000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021337
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Cut Dia Min 0.3937 10.00MM
Machine Side Connection Type Cylindrical
Insert Size Ic 10
Depth Of Cut Max 0.1969
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Tool Material Steel
Overall Len 5.4331 138.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
Only registered users can write reviews
