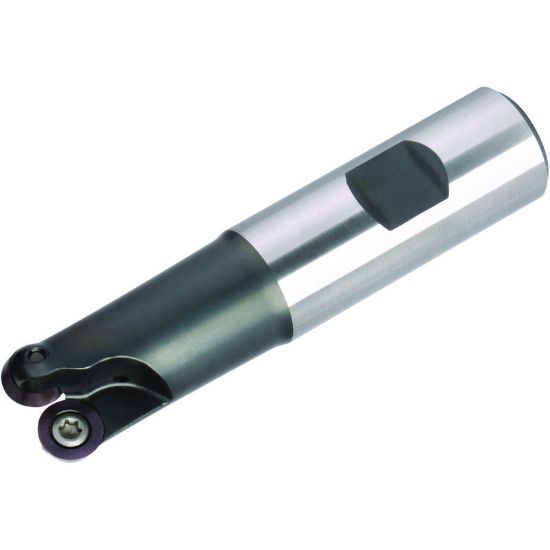

Picture of WIDIA/KENNAMETAL 12391011600 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL 12391011600 Button Cutter Milling Cutter 0.787 Cutter Diameter Cylindrical 0.787

ANSI: 12391011600

ISO: 12391011600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021336
Delivery date: 3-5 days
$432.80

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Ramp Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Insert Size Ic 10
Tool Material Steel
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Depth Of Cut Max 0.1969
Cut Dia Min 0.3937 10.00MM
Overall Len 3.6220 92.00MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
