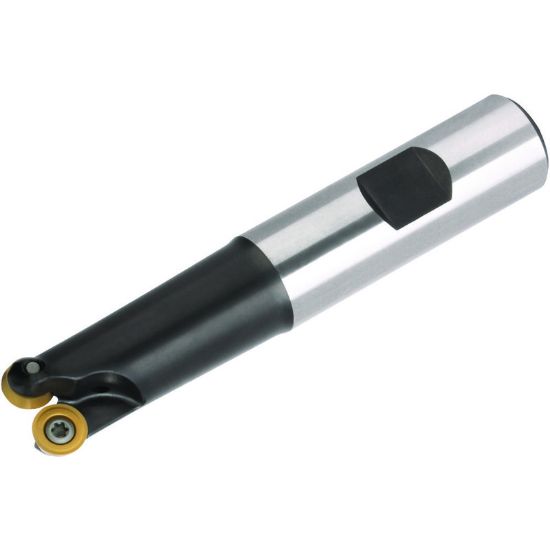

Picture of WIDIA/KENNAMETAL 12391011400 Button Cutter Milling Cutter 0.629 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL 12391011400 Button Cutter Milling Cutter 0.629 Cutter Diameter Cylindrical 0.984

ANSI: 12391011400

ISO: 12391011400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021335
Delivery date: 3-5 days
$432.80

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 0.6299 16.00MM
Cut Dia Min 0.3150 8.00MM
Machine Side Connection Type Cylindrical
Insert Size Ic 802
Flutes/Inserts 2
Depth Of Cut Max 0.1575
Overall Len 7.2047 183.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
