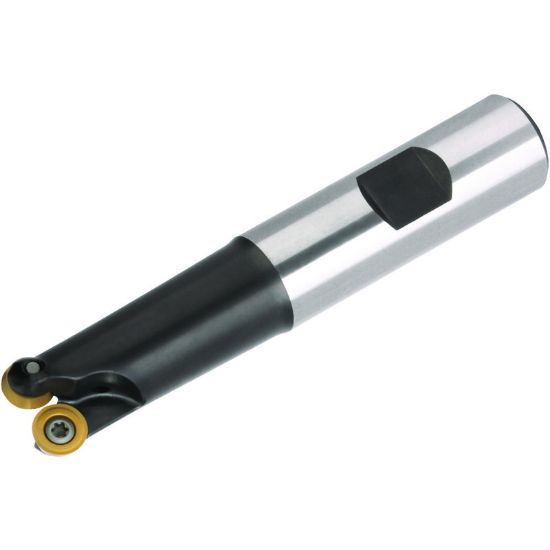

Picture of WIDIA/KENNAMETAL 12391011000 Button Cutter Milling Cutter 0.629 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL 12391011000 Button Cutter Milling Cutter 0.629 Cutter Diameter Cylindrical 0.787

ANSI: 12391011000

ISO: 12391011000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021334
Delivery date: 3-5 days
$378.00

Features And Benefits

General purpose face and copy milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Dia 0.6299 16.00MM
Cut Dia Min 0.3150 8.00MM
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Depth Of Cut Max 0.1575
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 802
Overall Len 5.1969 132.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RD
