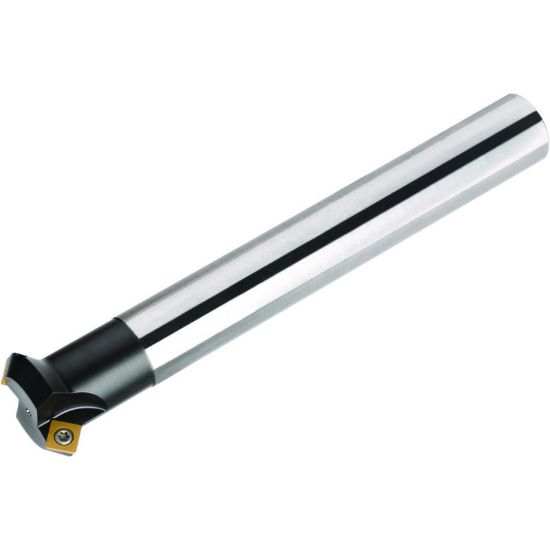

Picture of WIDIA/KENNAMETAL 12292550400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

WIDIA/KENNAMETAL 12292550400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

ANSI: 12292550400

ISO: 12292550400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022634
Delivery date: 3-5 days
$163.44

Features And Benefits

Chamfer milling in steel, stainless steel, and cast Iron.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Insert Type Positive
Application Back Chamfering, Face Milling, Chamfering
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.1340 28.80MM
Neck Dia 0.6100
Chamfer Angle 45.0°
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Insert Size Ic 12 "43"
Machine Side Connection Type Weldon
Overall Len 7.8740 200.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.2520
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style SP
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
