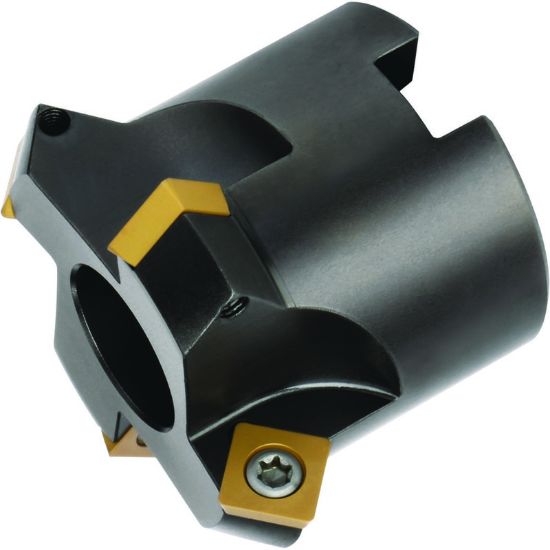

Picture of WIDIA/KENNAMETAL 12292511600 45.0° Milling Cutter 3.138 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12292511600 45.0° Milling Cutter 3.138 Cutter Diameter Face Mill 0.866

ANSI: 12292511600

ISO: 12292511600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022633
Delivery date: 3-5 days
$326.00

Features And Benefits

Chamfer milling in steel, stainless steel, and cast Iron.

Products specifications
Attribute name Attribute value
General Product Information
Application Back Chamfering, Face Milling, Chamfering
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Insert Size Ic 12 "43"
Cutter Dia 3.1380 79.71MM
Cut Dia Min 2.4800 62.99MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Chamfer Angle 45.0°
Depth Of Cut Max 0.3270
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SP
