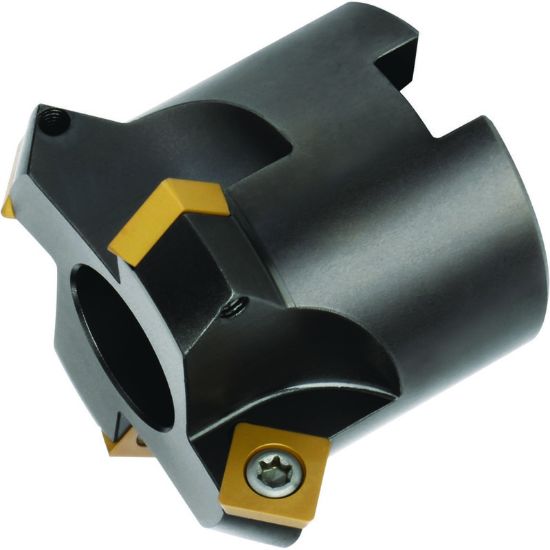

Picture of WIDIA/KENNAMETAL 12292511200 45.0° Milling Cutter 2.059 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12292511200 45.0° Milling Cutter 2.059 Cutter Diameter Face Mill 0.866

ANSI: 12292511200

ISO: 12292511200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022631
Delivery date: 3-5 days
$252.48

Features And Benefits

Chamfer milling in steel, stainless steel, and cast iron.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Chamfer Angle 45.0°
Depth Of Cut Max 0.2400
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 12 "43"
Cutter Dia 2.0590 52.30MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Hand R/L Right
